Fiber optic splice closure

•

  Horizonal Fiber Optic Splice Closure

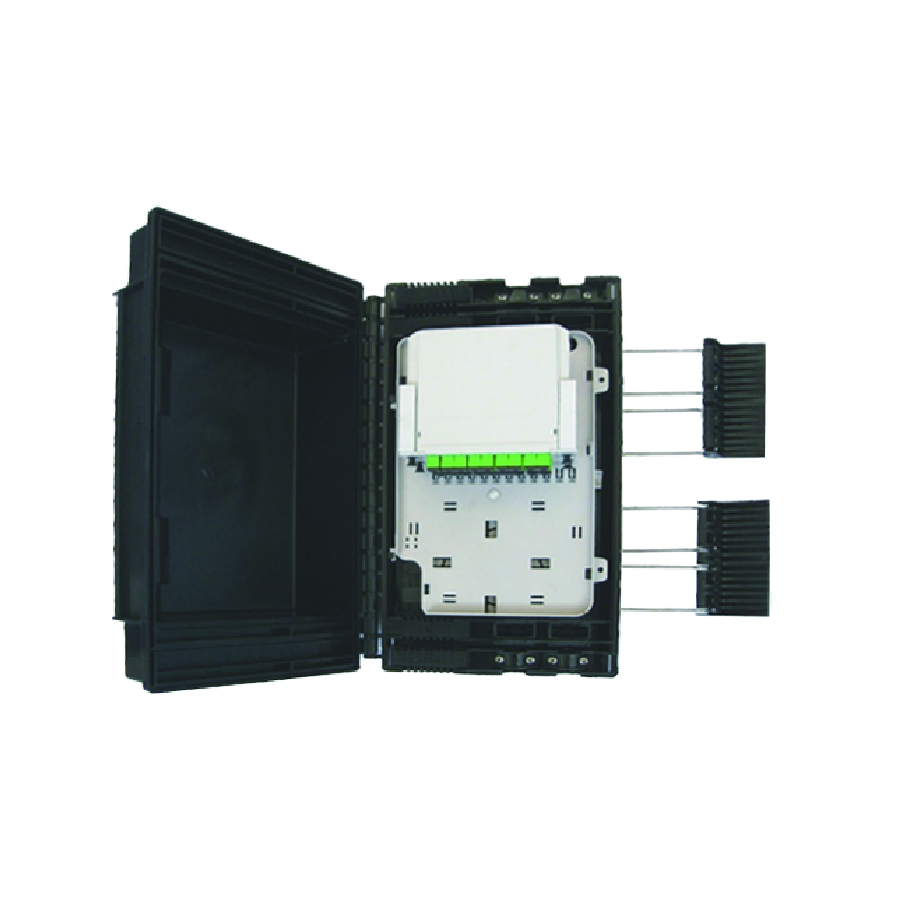

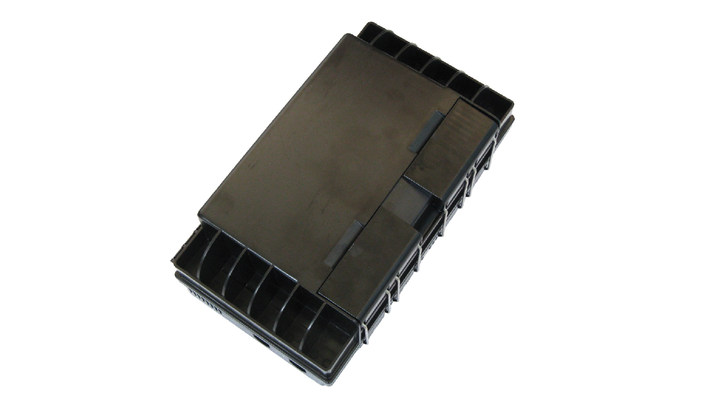

  GJS-III-2019 Fiber Optic Splice Closure GJS-III-2019 optical fiber distribution cable connector box is used in terminal access link of FTTH optical fiber to household access system. It is an ideal suppo...
  Quick Preview


  GJS-III-2019 Fiber Optic Splice Closure

  Maximum external dimensions	350mm×210mmx110mm
  Maximum capacity	48 core
  Maximum number of splice trays	max 1PCS
  Number of optical cable entranceand exit tubes	4 main cable ports,16 drop cable ports
  Protection level	IP65
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel










  Detail >
•

  Horizontal Fiber Optic Splice Closure

  GJS-III-2021 GJS-III-2021 optical fiber distribution cable connector box is used in terminal access link of FTTH optical fiber to household access system. It is an ideal sup...
  Quick Preview


  GJS-III-2021

  Product number	300x186.5x59mm
  Maximum external dimensions	300x186.5x59mm
  Maximum capacity	24core
  Capacity of each splice tray	24core/tray
  Maximum number of splice trays	max 1PCS
  Material	Shell: PC Splice tray: PC+ABS Metal parts: stainless steel










  Detail >
•

  Fiber Optic Splice Closure

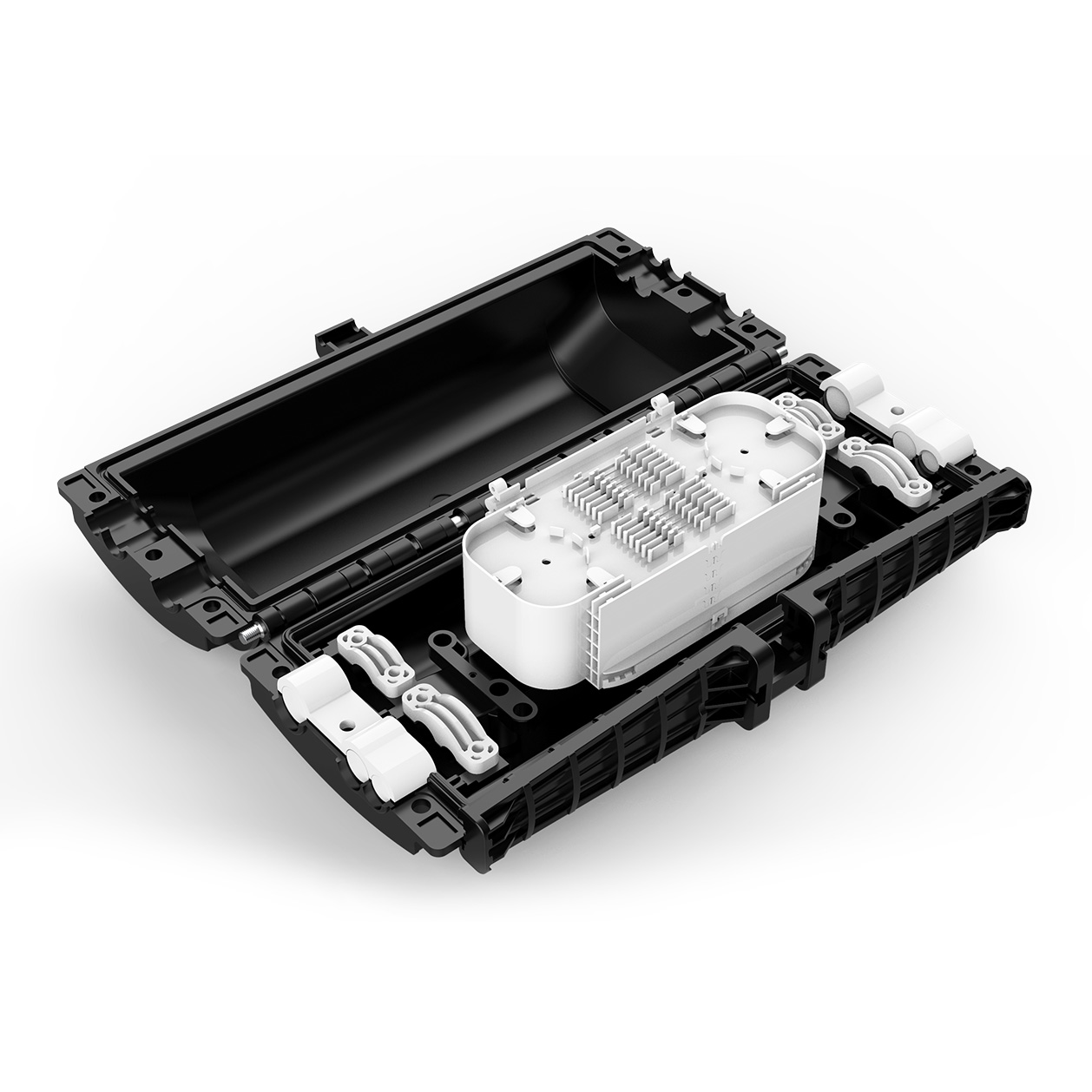

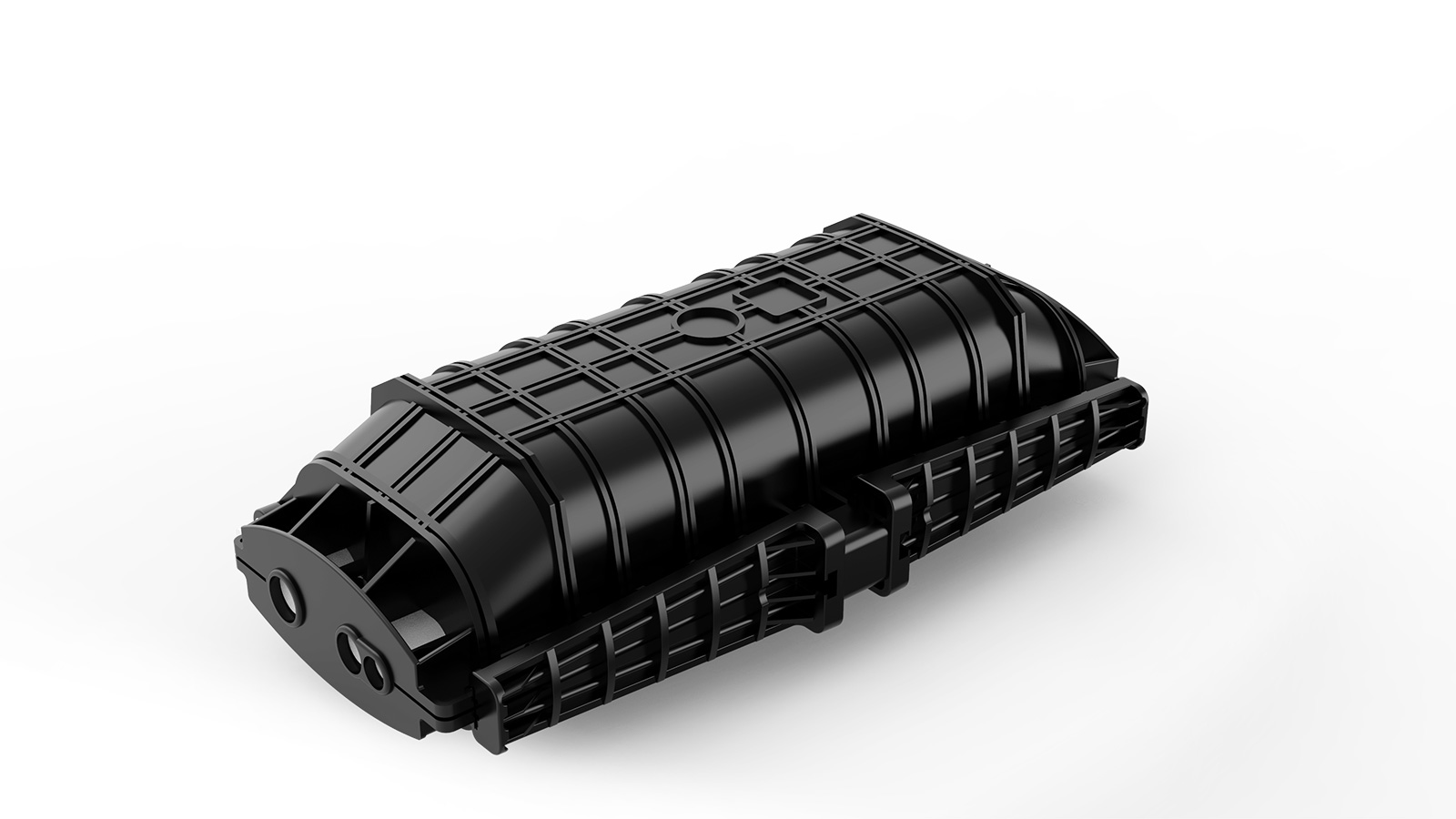

  Fiber Optic Splice Closure Inline Seal Tape 6001 Fiber Optic Splice Closure Inline Seal Tape 6001, adopts an innovative arc circular clamshell Half-Fur structure design, and the whole is clamped with two plug-...
  Quick Preview


  Fiber Optic Splice Closure Inline Seal Tape 6001

  Maximum size	455mm×220mm×132mm
  Maximum capacity	144 core
  Maximum number of splice trays	6 pictures
  The number of inlet and outlet pipes of the optical cable	6 pcs
  Protection level	IP68
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel




  Detail >
•

  Fiber Optic Splice Closure

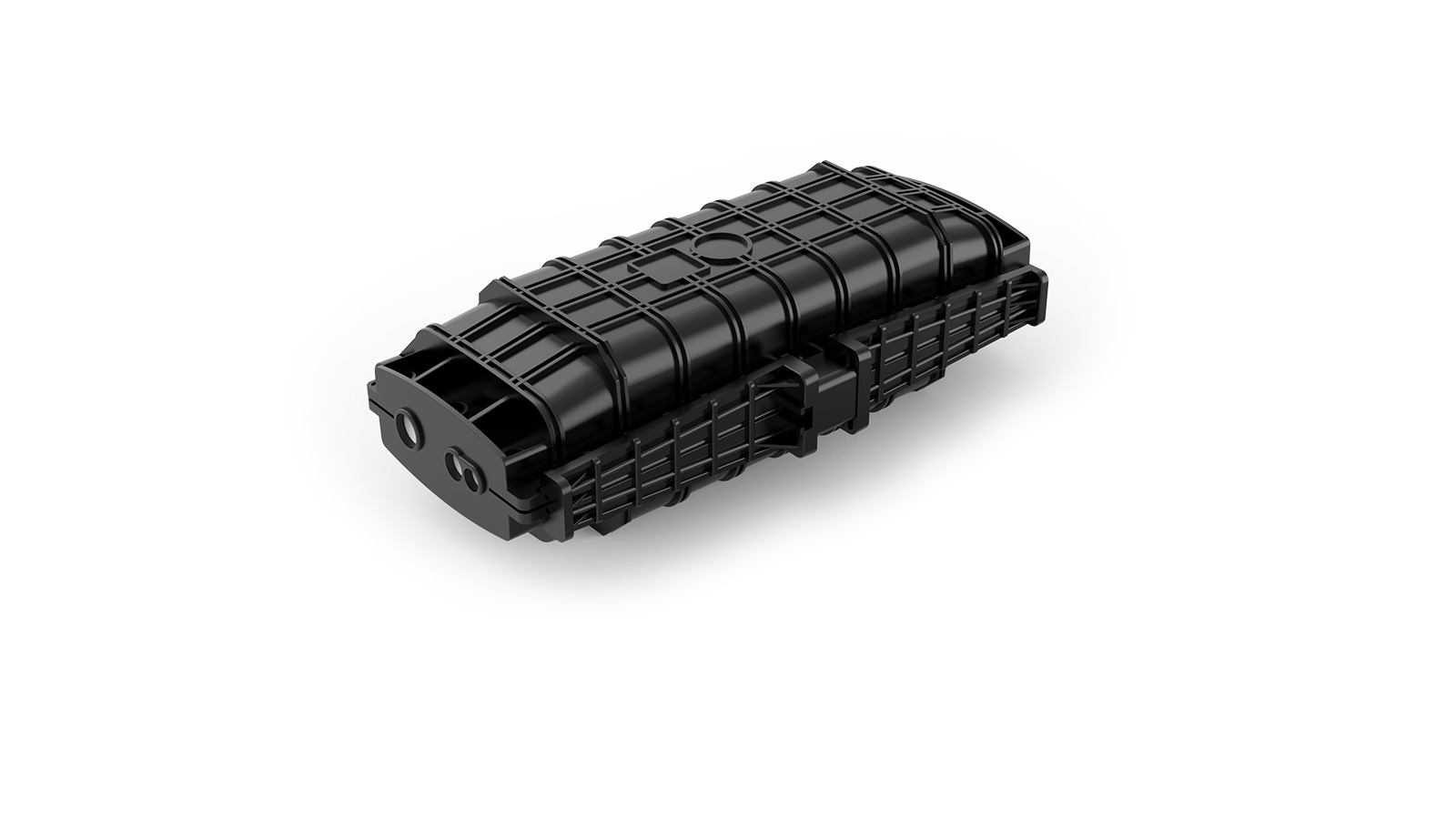

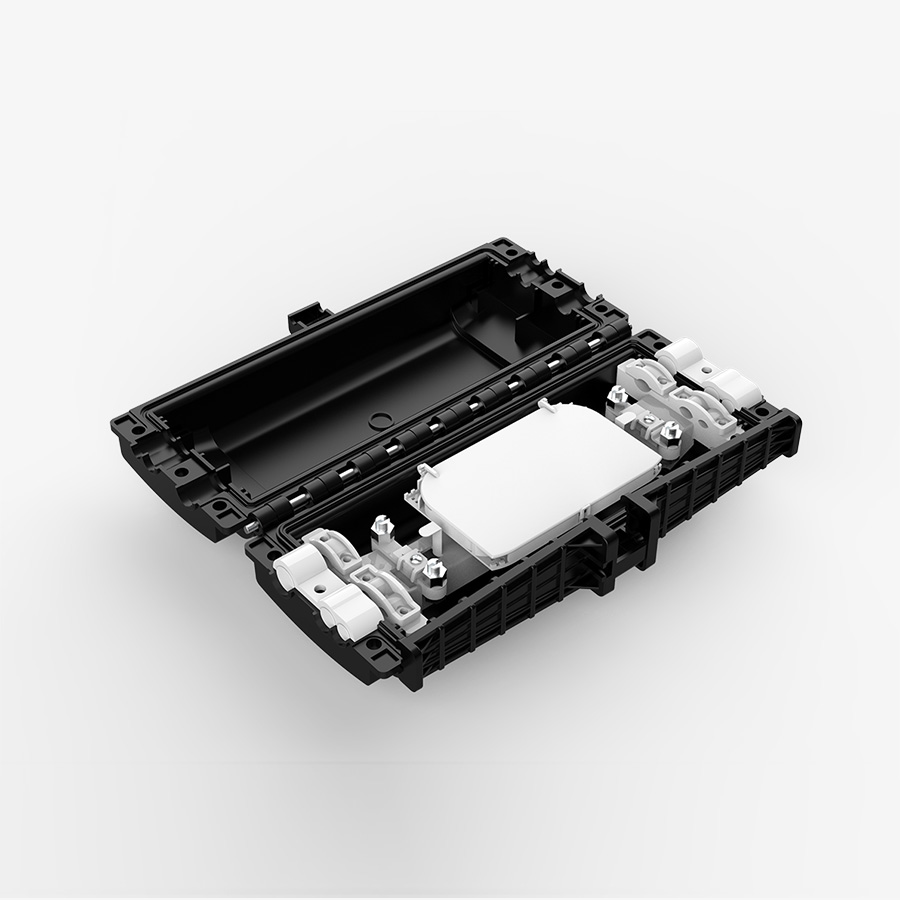

  Fiber Optic Splice Closure Inline Seal Tape 6002 Fiber Optic Splice Closure Inline Seal Tape 6002, adopts an innovative arc circular clamshell Half-Fur structure design, and the whole is clamped with two plug-...
  Quick Preview


  Fiber Optic Splice Closure Inline Seal Tape 6002

  Maximum size	455mm×220mm×132mm
  Maximum capacity	144 core
  Maximum number of splice trays	6 pictures
  The number of inlet and outlet pipes of the optical cable	6 pcs
  Protection level	IP68
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel




  Detail >
•

  Horizontal Fiber Optic Splice Closure

  GJS-III-6003 GJS-III-6003 type Hafnium tape sealed optical cable joint box adopts an innovative arc circularflip cover Hafnium structure design, and is connected by a rotary...
  Quick Preview


  GJS-III-6003

  model	GJS-III-6003
  Maximum external dimensions	396x190x126mm
  Maximum capacity	Splicing tray A: 72 core Splicing tray B: 96 core Splicing tray C: 144 core
  Capacity of each splice tray	Splicing tray A: 12 core/tray Splicing tray B: 12-24 core/tray Splicing tray C: 36 core/tray
  number of optical cable entrance and exit tubes	6 main cable ports
  Material	Shell: PC Metal parts: stainless steel
















  Detail >
•

  Fiber Optic Splice Closure

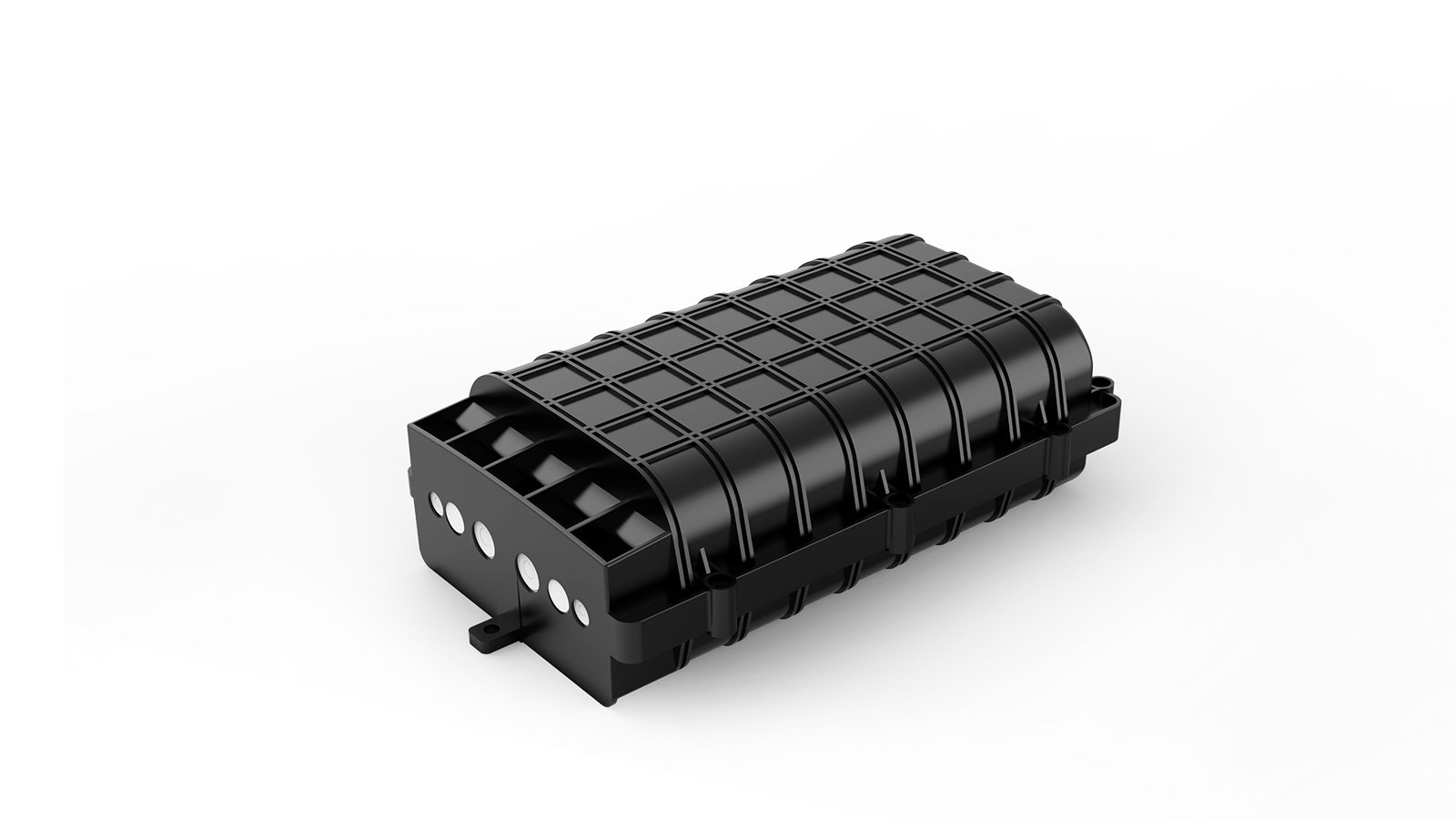

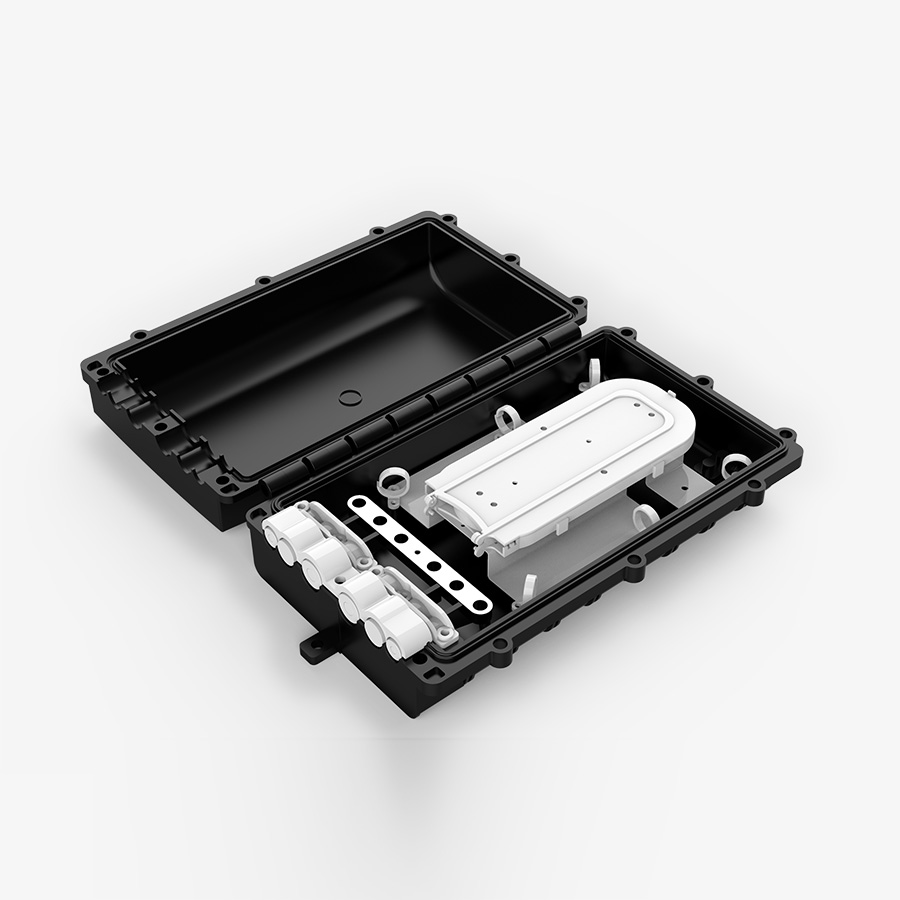

  Fiber Optic Splice Closure Inline Seal Tape 6004 Fiber Optic Splice Closure Inline Seal Tape 6004, adopts an innovative arc-shaped clamshell Half-Fur structure design, and the whole is connected by a metal rot...
  Quick Preview


  Fiber Optic Splice Closure Inline Seal Tape 6004

  Maximum size	385mm×248mm×120mm
  Maximum capacity	288 core
  Maximum number of splice trays	9 pictures
  The number of inlet and outlet pipes of the optical cable	6 pcs
  Protection level	IP68
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel




  Detail >
•

  Fiber Optic Splice Closure

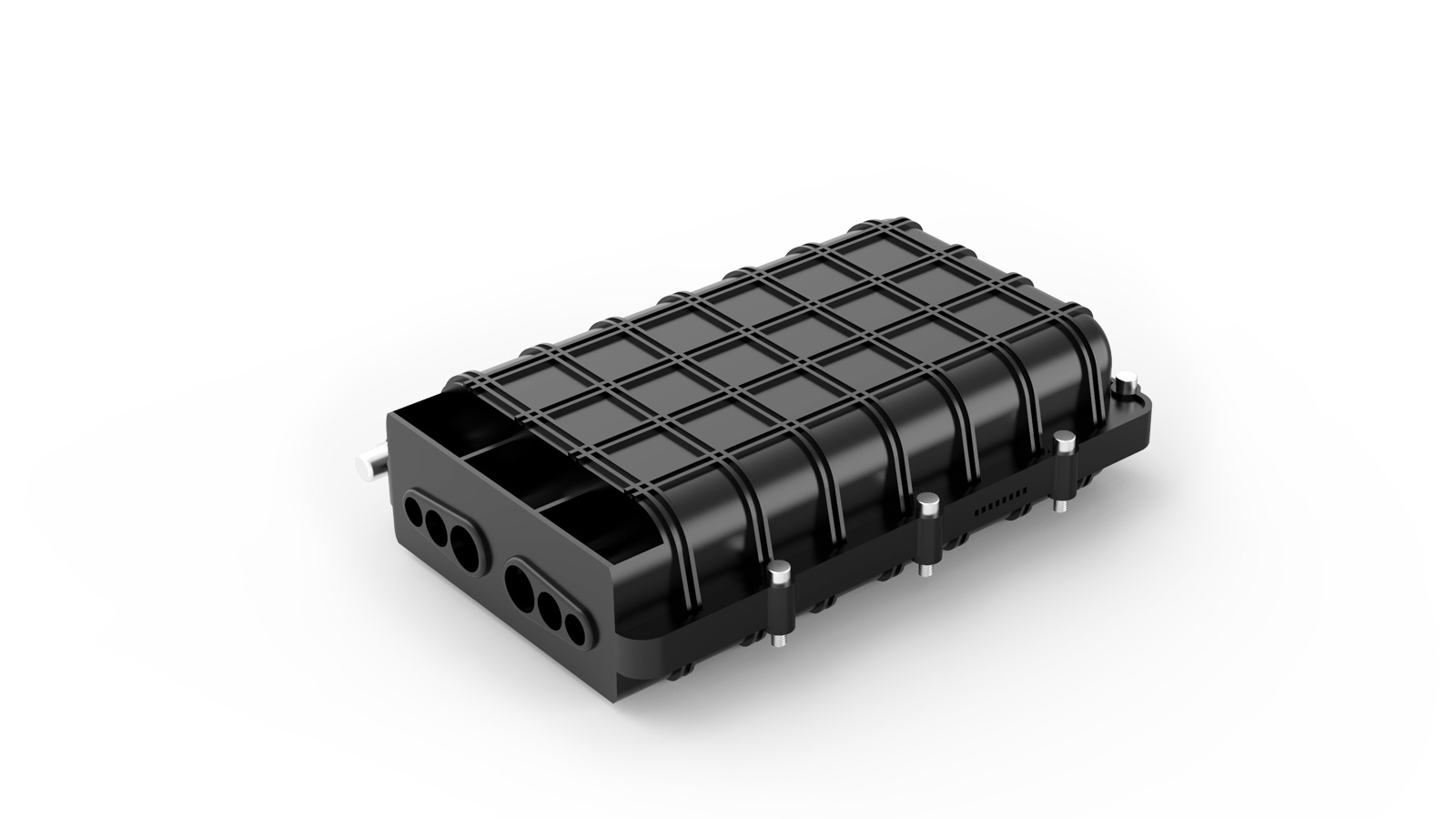

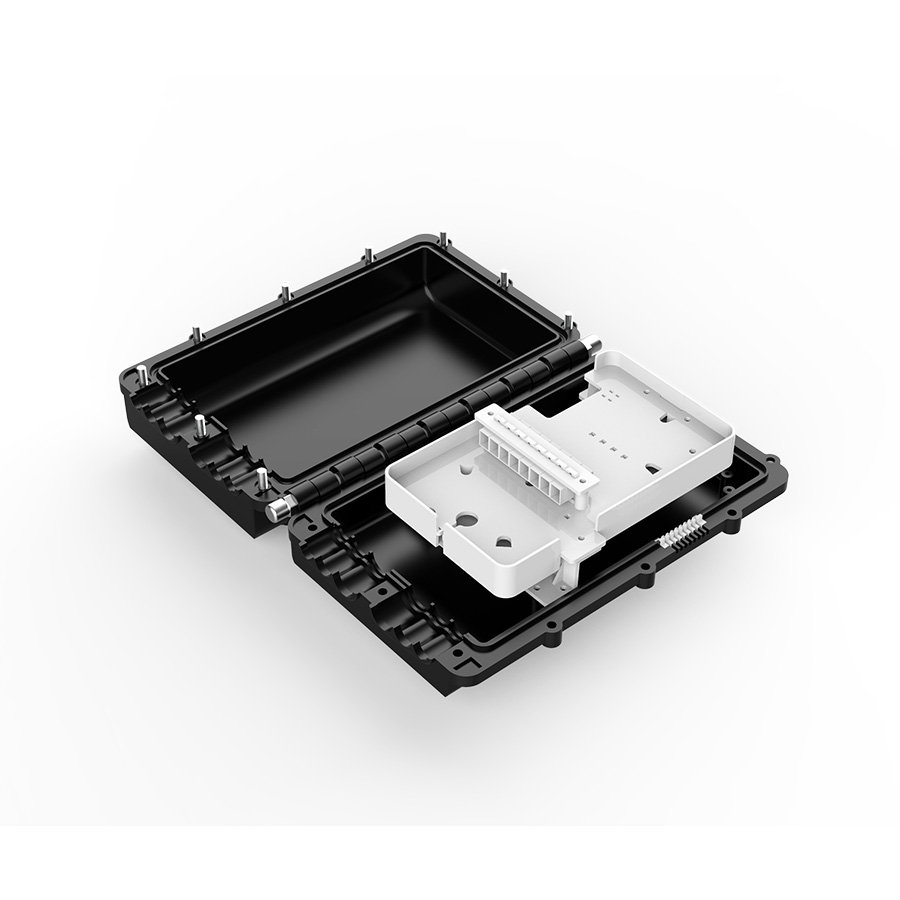

  Fiber Optic Splice Closure Inline Seal Tape 6005 Fiber Optic Splice Closure Inline Seal Tape 6005, adopts an innovative arc circular clamshell Half-Fur structure design, and the whole is connected by a metal r...
  Quick Preview


  Fiber Optic Splice Closure Inline Seal Tape 6005

  Maximum size	323mm×202mm×86mm
  Maximum capacity	96 core
  Maximum number of splice trays	8 pictures
  The number of inlet and outlet pipes of the optical cable	6 pcs
  Protection level	IP68
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel




  Detail >
•

  Horizontal Fiber Optic Splice Closure

  GJS-III-6006 GJS-III-6006 Hafnium tape sealed optical cable joint box adopts an innovative arc circular flip cover Hafnium structure design, and is fixed and sealed with pla...
  Quick Preview


  GJS-III-6006

  model	GJS-III-6006
  Maximum external dimensions	280x200x90mm
  Maximum capacity	Splicing tray A: 48 core Splicing tray B: 96 core
  Capacity of each splice tray	Splicing tray A: 6-12 core/tray Splicing tray B: 12-24 core/tray
  number of optical cable entrance and exit tubes	2 main cable ports
  Material	Shell: PC Metal parts: 304 stainless steel



















  Detail >
•

  Fiber Optic Splice Closure

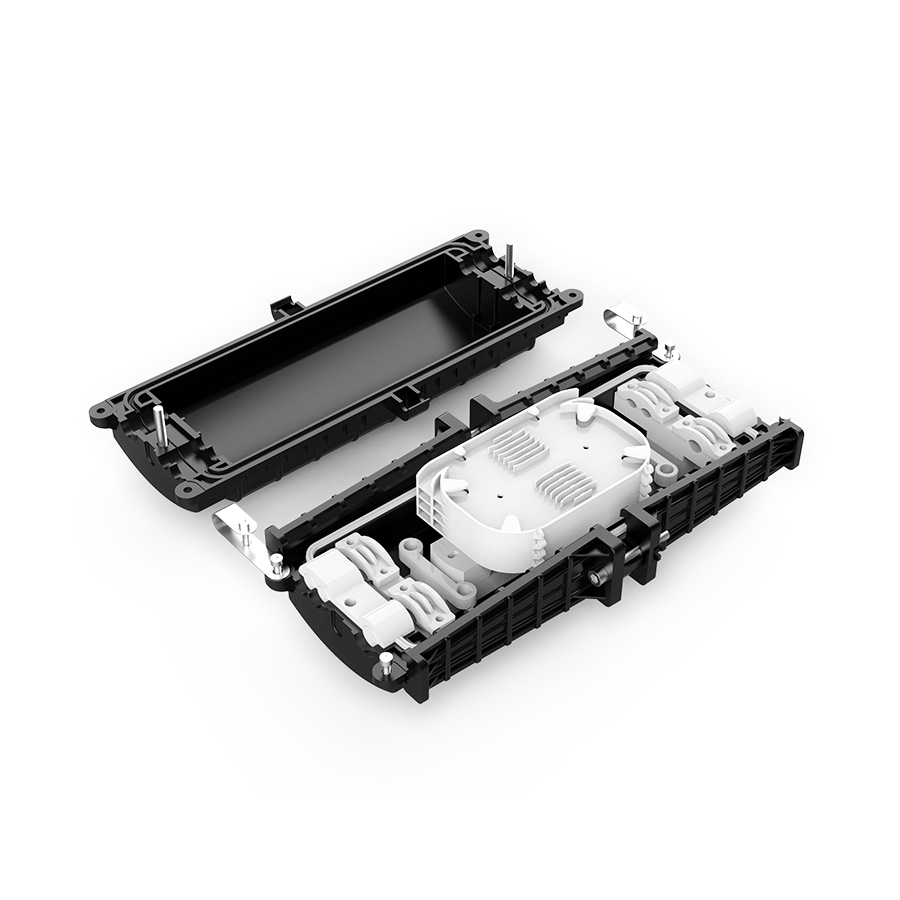

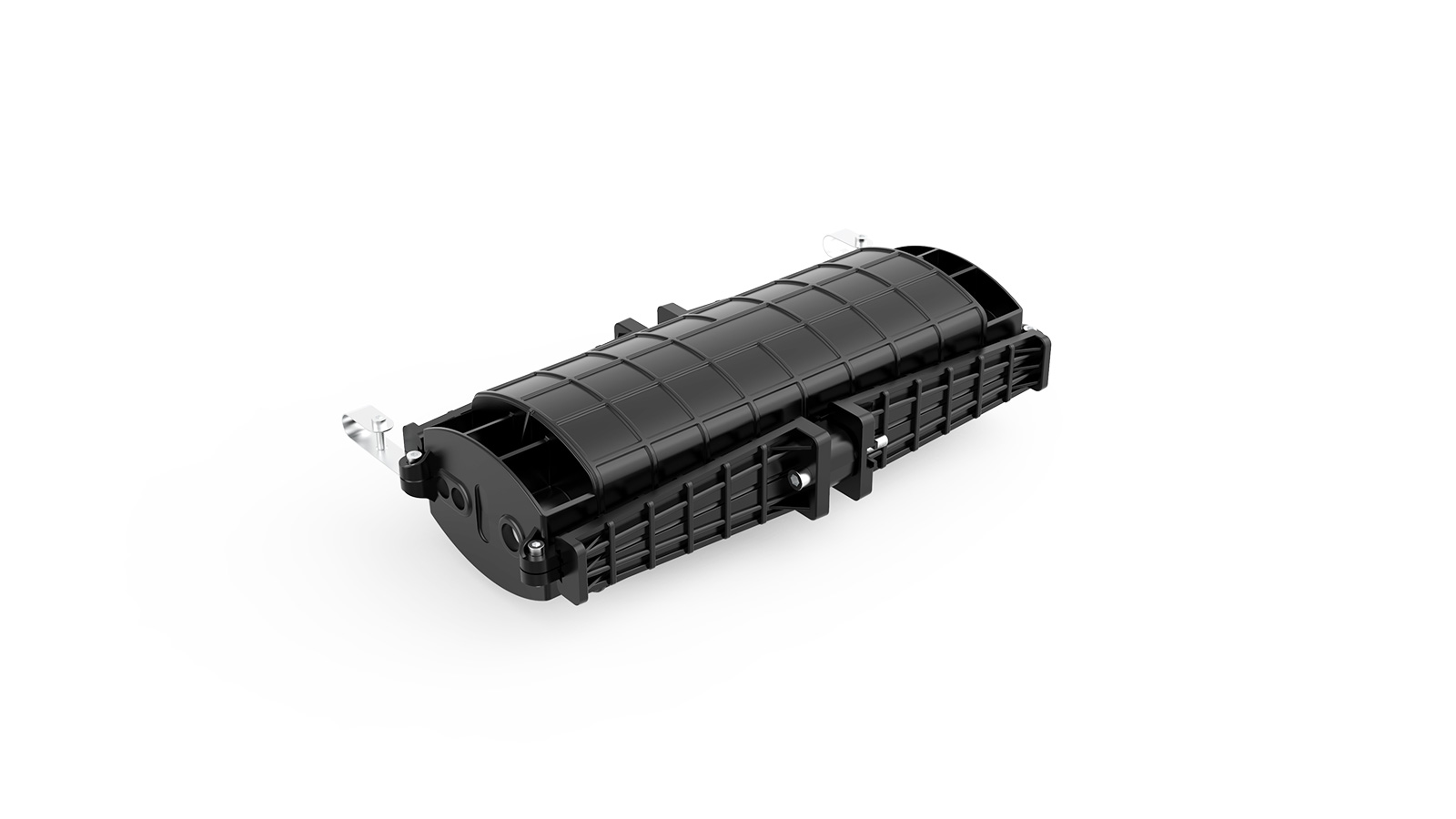

  Fiber Optic Splice Closure Inline Seal Tape 6007 Fiber Optic Splice Closure Inline Seal Tape 6007, adopts an innovative arc circular clamshell Half-Fur structure design, and the whole is clamped with two plug-...
  Quick Preview


  Fiber Optic Splice Closure Inline Seal Tape 6007

  Maximum size	388mm×184mm×104mm
  Maximum capacity	96 core
  Maximum number of splice trays	4 pictures
  The number of inlet and outlet pipes of the optical cable	6 pcs
  Protection level	IP68
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel




  Detail >
•

  Fiber Optic Splice Closure

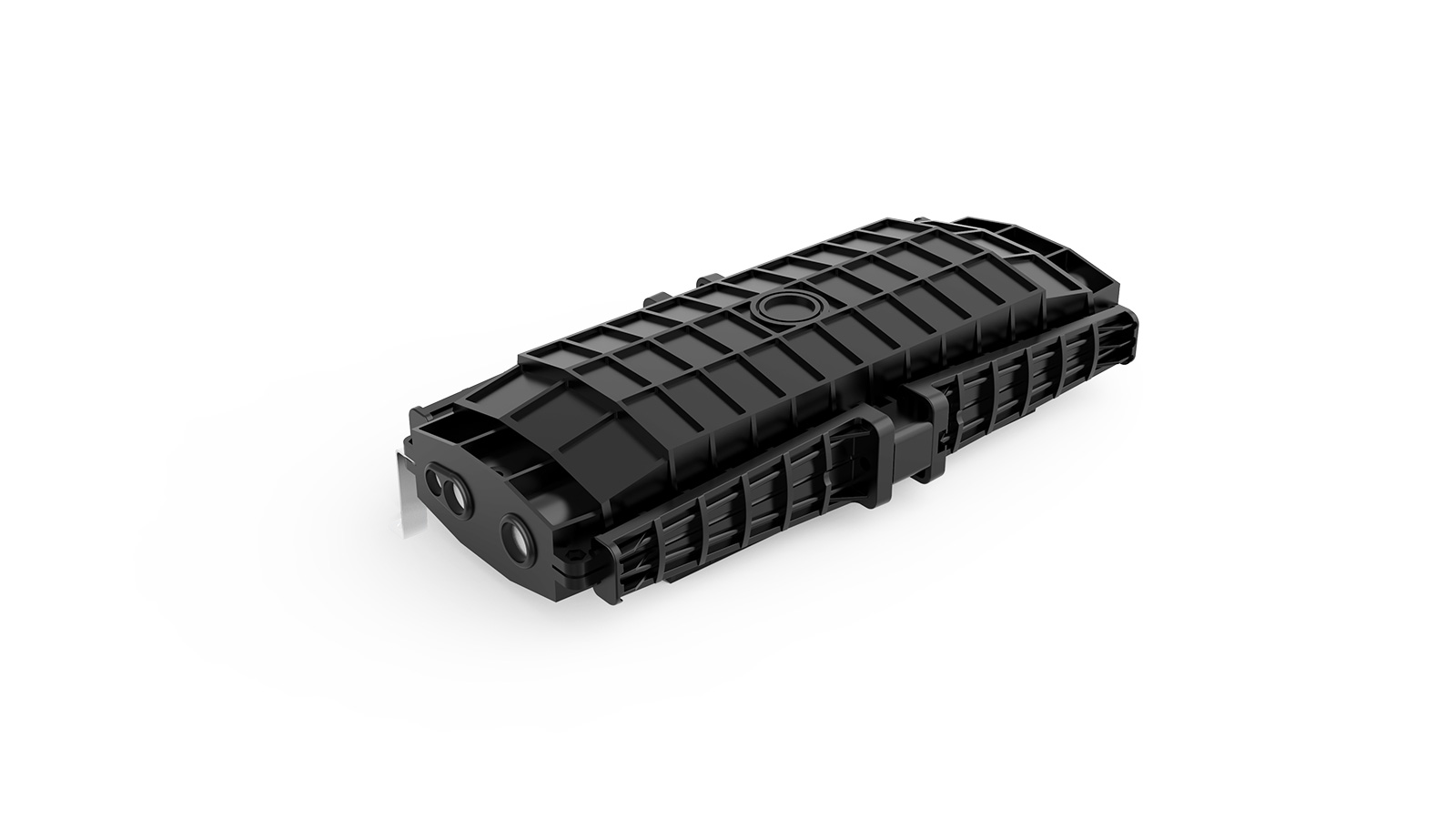

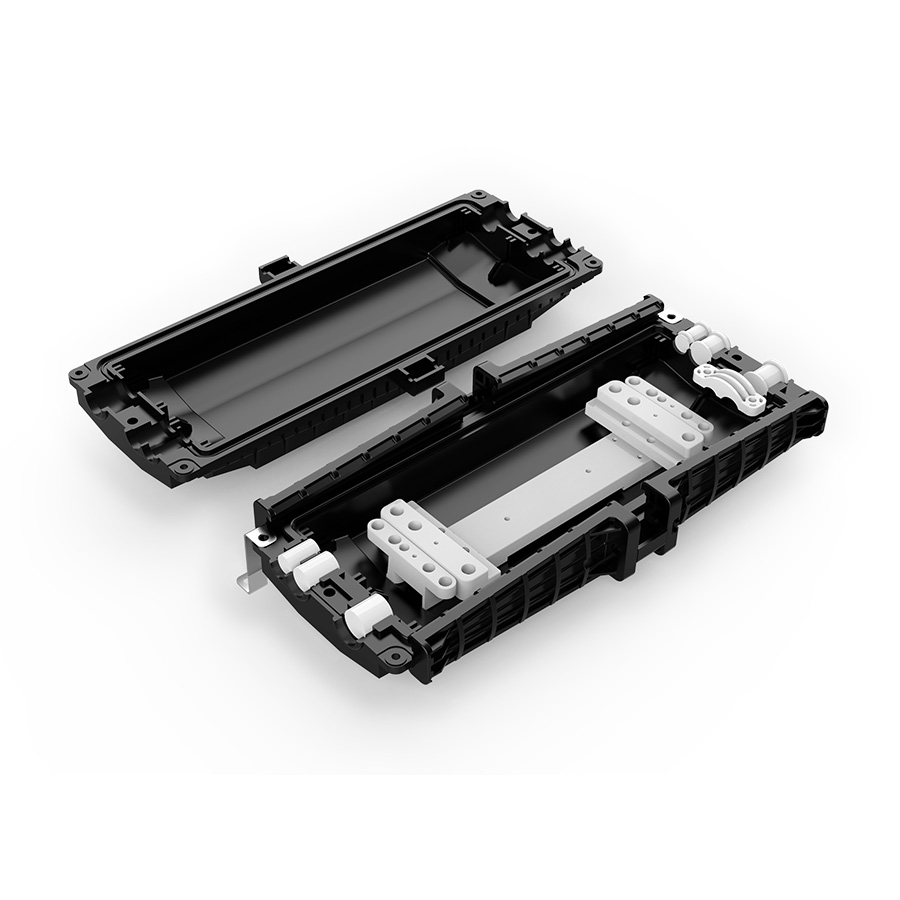

  Fiber Optic Splice Closure Inline Seal Tape 6010 Fiber Optic Splice Closure Inline Seal Tape 6010, adopts an innovative arc circular clamshell Half-Fur structure design, and the whole is clamped with two plug-...
  Quick Preview


  Fiber Optic Splice Closure Inline Seal Tape 6010

  Maximum size	450mm×216mm×160mm
  Maximum capacity	288 core
  Maximum number of splice trays	8 pictures
  The number of inlet and outlet pipes of the optical cable	6 pcs
  Protection level	IP68
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel




  Detail >
•

  Fiber Optic Splice Closure

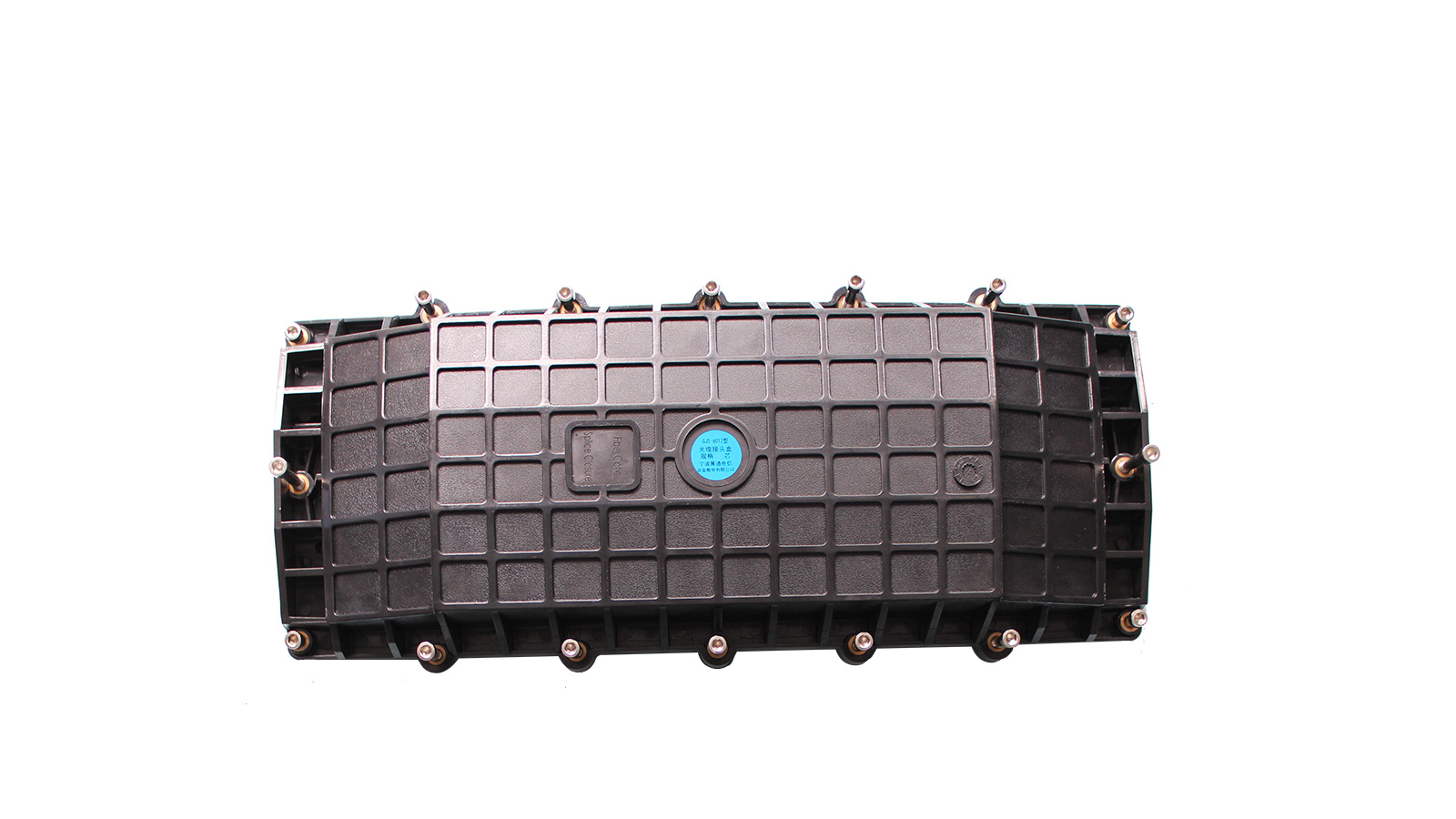

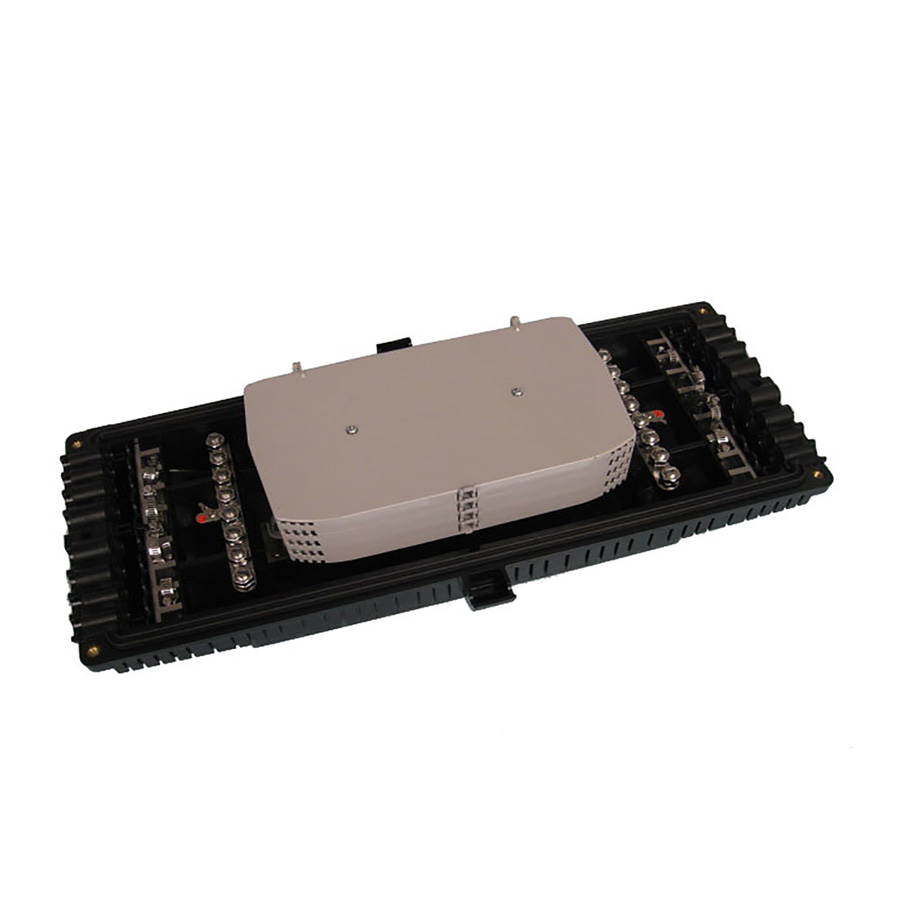

  Fiber Optic Splice Closure Inline Seal Tape 6012 Fiber Optic Splice Closure Inline Seal Tape 6012, adopts an innovative arc circular clamshell Half-Fur structure design, and the whole is clamped with two plug-...
  Quick Preview


  Fiber Optic Splice Closure Inline Seal Tape 6012

  Maximum size	560mm×245mm×180mm
  Maximum capacity	1080 core
  Maximum number of splice trays	8 pictures
  The number of inlet and outlet pipes of the optical cable	16 pcs
  Protection level	IP68
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel




  Detail >
•

  Horizontal Fiber Optic Splice Closure

  GJS-III-6013 GJS-Ⅲ-6013 Hafu-type tape sealed cable connector box, using innovative arc Hafu-type structure design, the whole with four insert plate clamping and a small num...
  Quick Preview


  GJS-III-6013

  model	GJS-III-6013
  Maximum external dimensions	59x320x215mm
  Maximum capacity	Splicing tray (bunchy): 432 core Splicing tray (bunchy): 648 core Splicing tray (ribbon): 1008 core Splicing tray (ribbon): 1512 core
  Capacity of each splice tray	Splicing tray (bunchy): 24-48 core/tray Splicing tray (bunchy): 36-72 core/tray Splicing tray (ribbon): 144 core/tray Splicing tray (ribbon): 216 core/tray
  number of optical cable entrance and exit tubes	8 main cable ports
  Material	Shell: PC Metal parts: 304 stainless steel



















  Detail >
•

  Fiber Optic Splice Closure

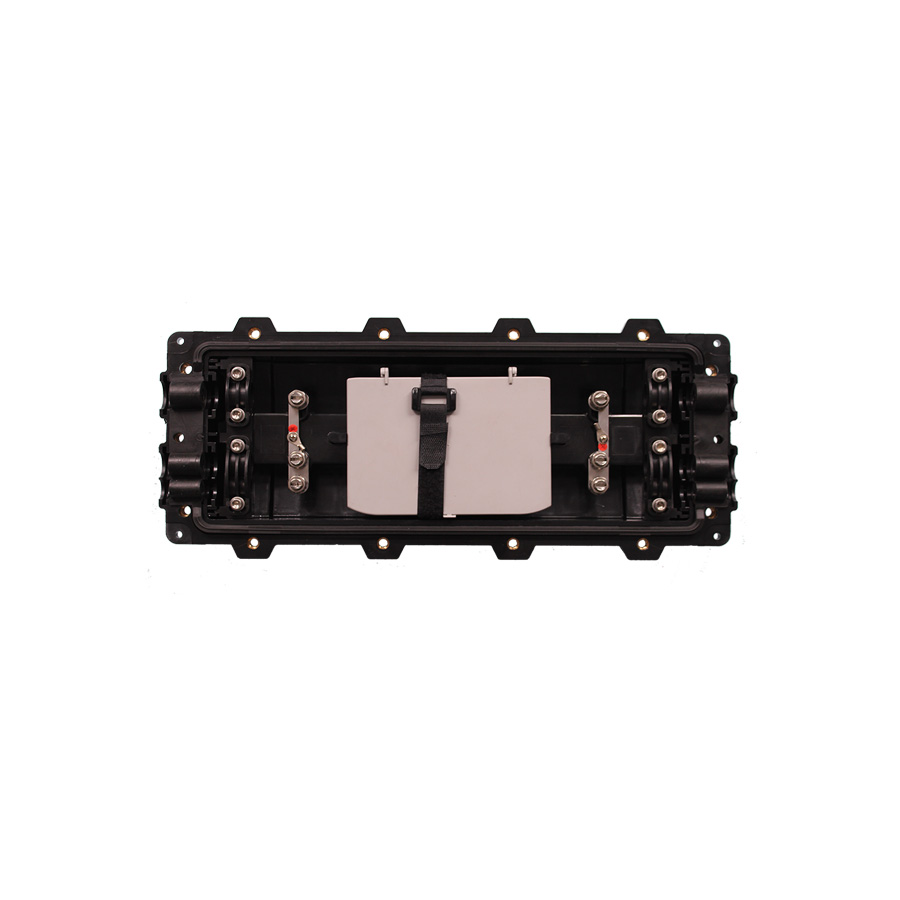

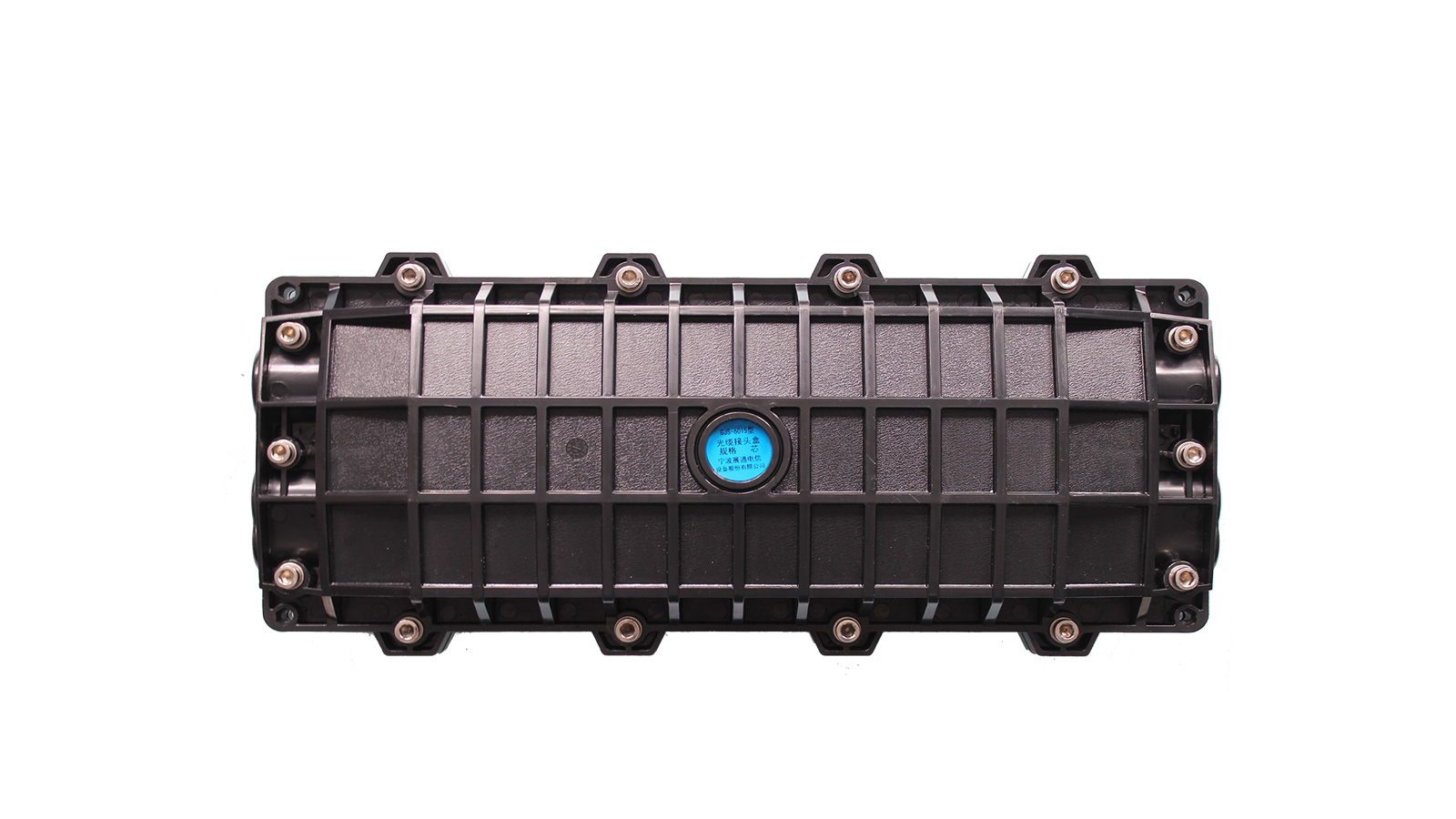

  Fiber Optic Splice Closure Inline Seal Tape 6015 Fiber Optic Splice Closure Inline Seal Tape 6015, adopts an innovative arc circular clamshell Half-Fur structure design, and the whole is clamped with two plug-...
  Quick Preview


  Fiber Optic Splice Closure Inline Seal Tape 6015

  Maximum size	450mm×200mm×110mm
  Maximum capacity	72 core
  Maximum number of splice trays	4 pictures
  The number of inlet and outlet pipes of the optical cable	6 pcs
  Protection level	IP68
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel




  Detail >
•

  Fiber Optic Splice Closure

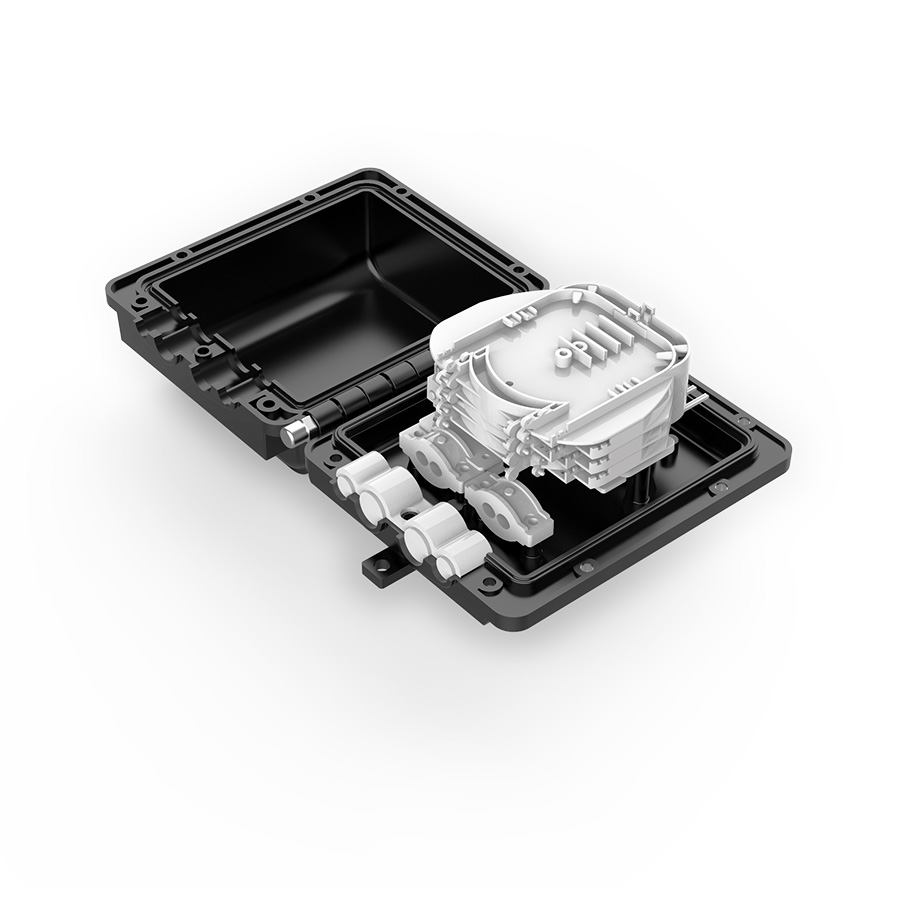

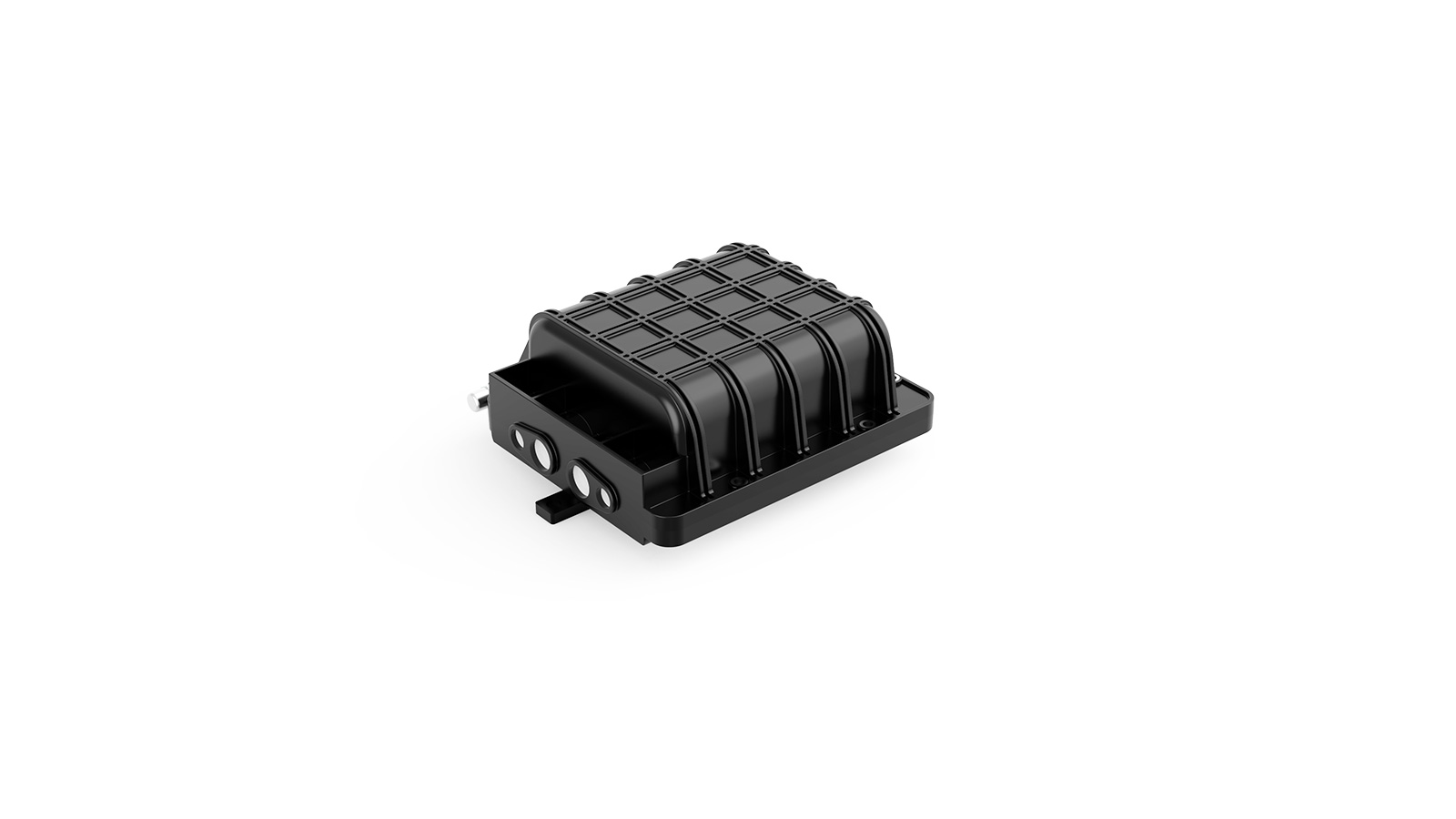

  Fiber Optic Splice Closure Inline Seal Tape 6017 Fiber Optic Splice Closure Inline Seal Tape 6017 adopts an innovative arc circular clamshell Half-Fur structure design, and the whole is clamped with two plug-i...
  Quick Preview


  Fiber Optic Splice Closure Inline Seal Tape 6017

  Maximum size	217mm×200mm×89mm
  Maximum capacity	48 core
  Maximum number of splice trays	4 pictures
  The number of inlet and outlet pipes of the optical cable	4 pcs
  Protection level	IP68
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel




  Detail >
•

  Fiber Optic Splice Closure

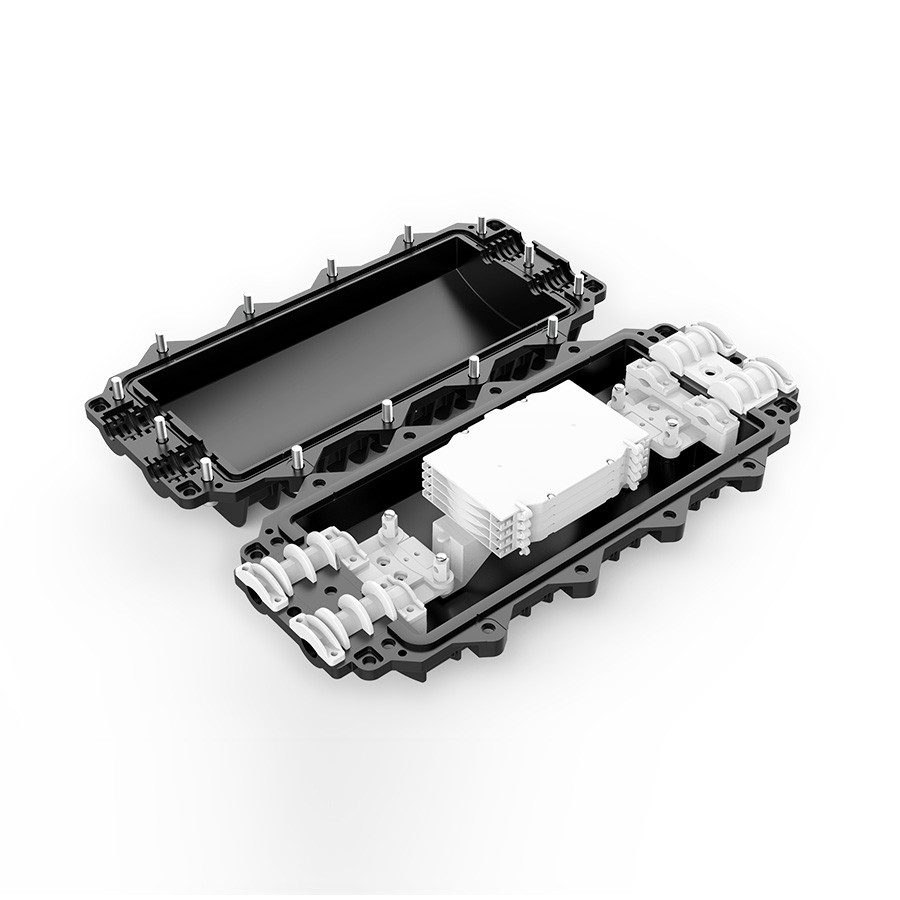

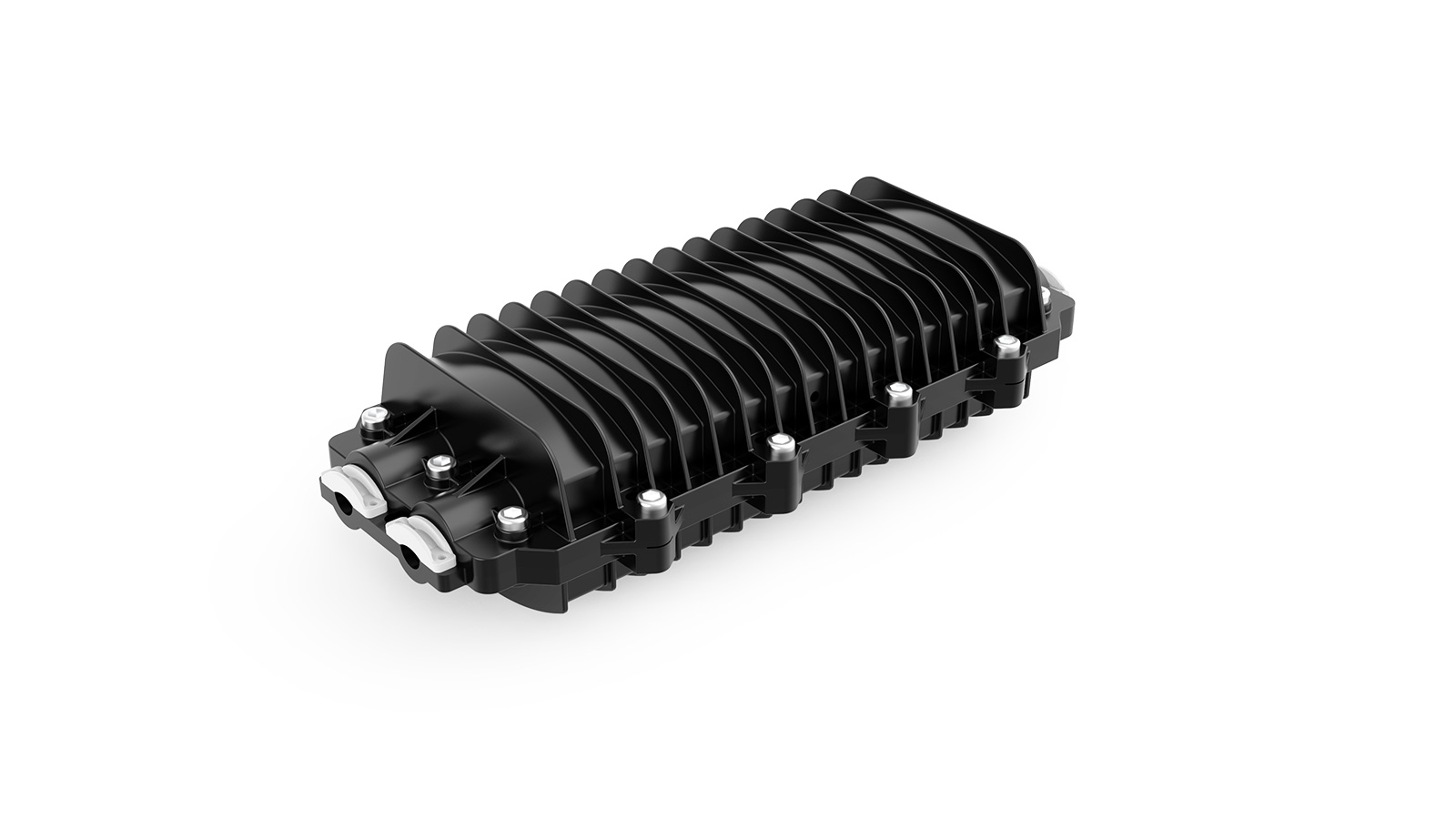

  Fiber Optic Splice Closure Inline Seal Tape 6020 Fiber Optic Splice Closure Inline Seal Tape 6020, adopts an innovative arc circular clamshell Half-Fur structure design, and the whole is clamped with two plug-...
  Quick Preview


  Fiber Optic Splice Closure Inline Seal Tape 6020

  Maximum size	474mm×222mm×124mm
  Maximum capacity	144 core
  Maximum number of splice trays	6 pictures
  The number of inlet and outlet pipes of the optical cable	4 pcs
  Protection level	IP68
  Material	Shell: modified PC Splice tray: PC+ABS Metal parts: stainless steel




  Detail >
•

  Horizontal Fiber Optic Splice Closure

  GJS-III-6029 GJS-Ⅲ-6029 Hafu-type tape sealed cable connector box adopts innovative circular Hafu-type split structure design, and multiple screws are fixed and sealed aroun...
  Quick Preview


  GJS-III-6029

  model	GJS-III-6029
  Maximum external dimensions	480x222x151mm
  Maximum capacity	Splicing tray A: 144 core Splicing tray B: 144 core Splicing tray C: 192 core Splicing tray D: 144 core
  Capacity of each splice tray	Splicing tray A: 12-24 core/tray Splicing tray B: 12-24 core/tray Splicing tray C: 12-24 core/tray Splicing tray D: 12-24 core/tray
  number of optical cable entrance and exit tubes	8 main cable ports
  Material	Shell: PP Metal parts: 304 stainless steel



















  Detail >
